Replace Flygt T05-25mm 3102 5520 Pump Mechanical Seal with 25mm Size and DIN24960 Standard
試供品およびクーポンのための私に連絡しなさい。
whatsapp:0086 18588475571
Wechat: 0086 18588475571
スカイプ: sales10@aixton.com
心配があれば、私達は24時間のオンライン・ヘルプを提供する。
x商品の詳細
| サイズ | 25mm | 顔の素材 | タングステンカーバイドTC |
|---|---|---|---|
| シートマテリアル | タングステンカーバイドTC | エラストーマー材料 | VITON FPM |
| 金属部品 | SS316 ハステロイ C AM350 | 最大圧力 | ≤1.5MPa |
| ライン速度 | ≤15m/s | 温度範囲 | -20°C-180°C |
| HTSコード | 8484.20.00 | モデル | T05-25mm |
| 標準サイズ | 20mm、25mm、35mm | コンプライアンス基準 | DIN24960、ISO3069、EN12576、API682 |
| 二次シール | VITON FPM | 材料オプション | 炭化タングステン、炭化シリコン、カーボングラファイト、アルミナ |
| 代替機種 | フライグト 3102、5520、3085 | ||
| ハイライト | Replace Flygt T05-25mm 3102 5520 Pump Mechanical Seal,25mm Flygt Pump Mechanical Seal,DIN24960 Standard Pump Mechanical Seal |
||
製品の説明
Replace Flygt T05-25mm 3102 5520 Pump Mechanical Seal
Product Overview
This high-quality mechanical seal is designed to replace Flygt pump seals, manufactured by Guangzhou Bergman Mechanical Seals Co., Ltd.
Technical Specifications
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Name | Mechanical Seal | Size | Standard size (20mm, 25mm, 35mm) |
| Brand | BERGMAN | Model | T05-25mm |
| Pressure | ≤ 1.5mpa | Line Speed | ≤ 15m/s |
| Temperature | -20°C-180°C (Depends on O-ring material) | Application | Flygt pump |
| Face Material | Tungsten carbide TC | Seat Material | Tungsten carbide TC |
| Secondary Seal | VITON FPM | Metal Parts | SS316 Hastelloy C AM350 |
| Certificate | ISO9001-2015 | Service | OEM customization service |
Compatible Flygt Pump Models
This seal is compatible with a wide range of Flygt pump models including:
- 1335.181, 2024, 2056, 2102.220, 2050, 2052, 2060, 2066, 2070, 2071
- 2075, 2082, 2084, 2090, 2095, 2101, 2012, 2102, 2125, 2135, 2140
- 2151, 2201, 2250, 2400, 2610, 2620, 2630, 2660, 2670, 2730, 2740
- 3041, 3045, 3050, 3057, 3060, 3065, 3066, 3067, 3068, 3069, 3080
- 3082, 3085, 3101, 3102, 3126, 3127, 3140, 3151, 3152, 3153, 3170
- 3171, 3200, 3202, 3230, 3231, 3300, 3301, 3306, 3310, 3311, 3350
- 3351, 3356, 3400, 3501, 3530, and full range of Flygt pump mechanical seals
Product Features
- Complies with DIN24960, ISO3069, EN12576, API682 standards
- Can replace original seals with cost-effective options
- Large inventory with factory-direct pricing
- Compatible with Burgman, John Crane, AES and other renowned brands
- OEM and customization services available
- Fast delivery and excellent after-sales service
Material Advantages
Our seals feature wear-resistant materials including:
- Tungsten carbide
- Silicon carbide
- Carbon graphite
- Alumina
- Rubber seals (VITON FPM)
- PTFE seals
- High-quality O-rings

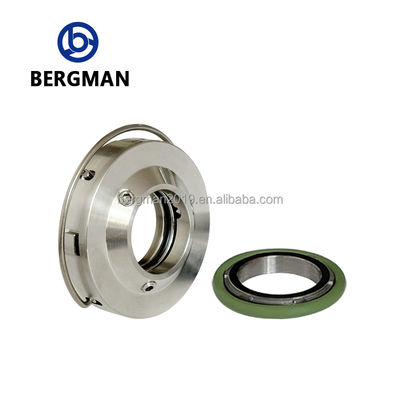

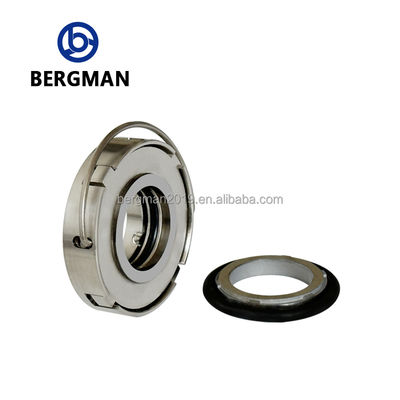

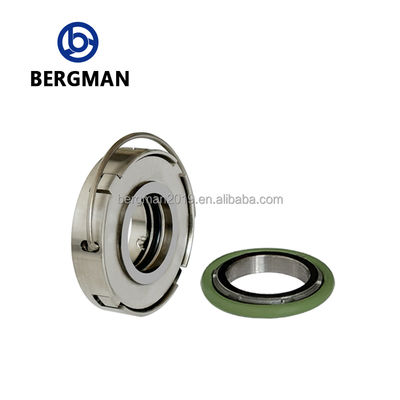

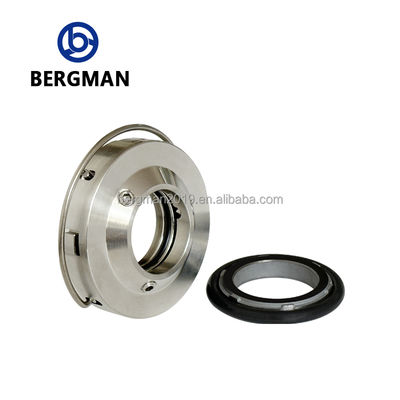

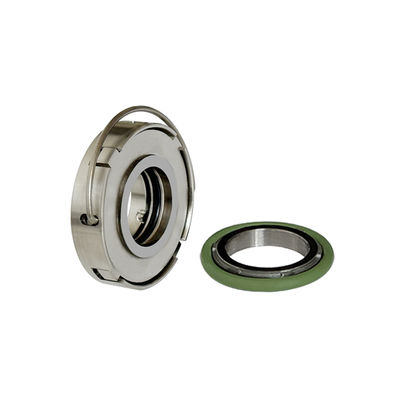

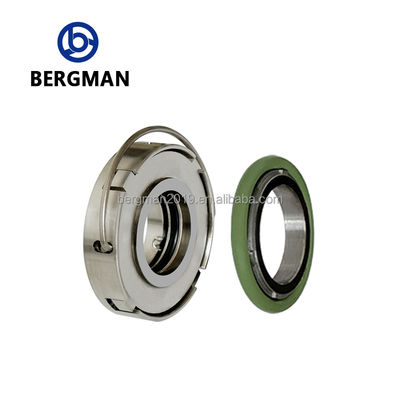

Product Images
Company Profile
Guangzhou Bogman Mechanical Seals Co., Ltd. (formerly Guangzhou Yongfa Mechanical Seals Co., Ltd.) was established in 1996. After more than 20 years of development, the company was reorganized in 2019 and expanded in 2023. We are ISO9001:2015 certified and specialize in:
- Pump mechanical seals
- Axe mechanical seals
- Fluid mechanical seals
- Metal bellows mechanical seals
- Various sealing materials (carbide, silicon carbide, carbon graphite, alumina)
Located in Guangzhou with convenient access to major ports, we maintain a 2,000+ square meter warehouse for fast delivery.
Frequently Asked Questions
Q: Are you a factory or a trader?
A: We are a production factory with our own international trade department.
Q: Where is your factory located?
A: Our factory is in Guangzhou City, near Guangzhou Port and Shenzhen Port.
Q: How many days is your delivery time?
A: Stock items ship immediately. Custom items require 10-25 days depending on quantity.
Q: What are your payment terms?
A: For stock: 100% prepayment. For custom orders: 30% deposit, 70% before shipping. We accept T/T, Western Union, and Alibaba payments.
