20mm Flygt Pump Mechanical Seal Upper Seal for Models 3069 3057 3060 3065 3085 Replace FGU-20mm
試供品およびクーポンのための私に連絡しなさい。
whatsapp:0086 18588475571
Wechat: 0086 18588475571
スカイプ: sales10@aixton.com
心配があれば、私達は24時間のオンライン・ヘルプを提供する。
x商品の詳細
| サイズ | 20mm | 顔の素材 | タングステンカーバイドTC |
|---|---|---|---|
| シートマテリアル | タングステンカーバイドTC | エラストーマー材料 | VITON FPM |
| 金属部品 | SS316 ハステロイ C AM350 | 最大圧力 | ≤1.5MPa |
| 最大ライン速度 | ≤15m/s | 温度範囲 | -20°C-180°C |
| モデル番号 | FS-G-U20mm | HTSコード | 8484.20.00 |
| シールタイプ | 機械シール | 二次シール | VITON FPM |
| 互換性のあるポンプ | フライト 3069、3057、3060、3065、3085 | 動作圧力 | ≤1.5MPa |
| 動作速度 | ≤15m/s | ||
| ハイライト | 20mm Flygt Pump Mechanical Seal,Replace FGU-20mm Upper Seal,Flygt Pump Models 3069 3057 3060 3065 3085 Mechanical Seal |
||
製品の説明

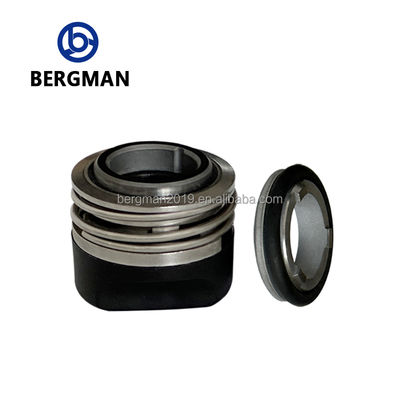

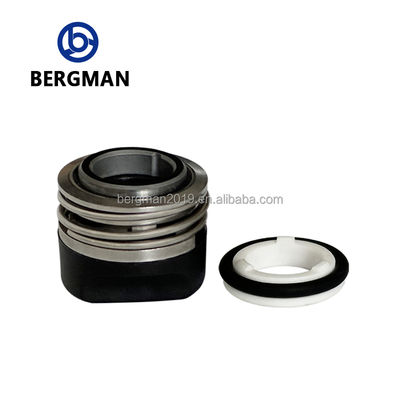

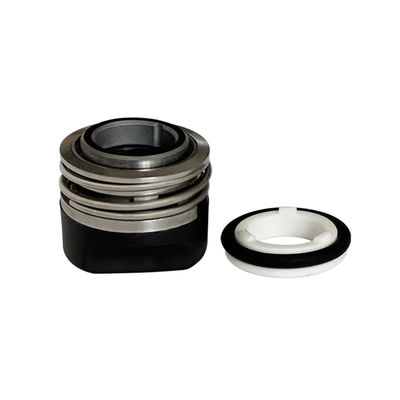

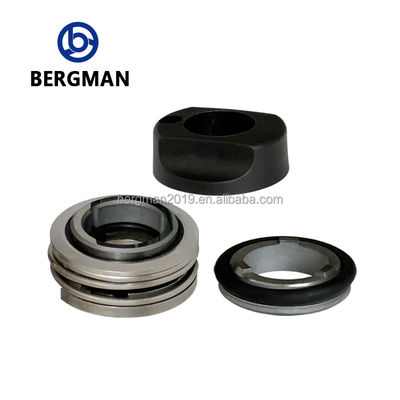

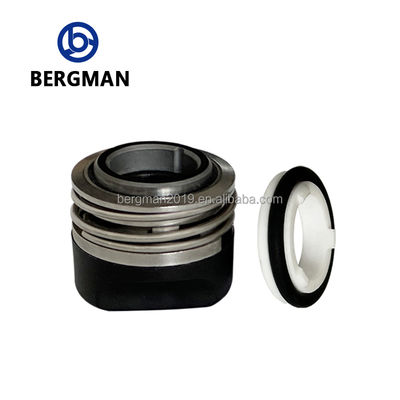

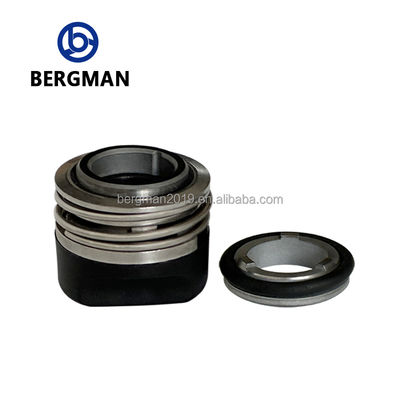

Replace Flygt FGU-20mm 3069 3057 3060 3065 3085 Pump Mechanical Seal Upper Seal
Product Description
Guangzhou Bergman Mechanical Seals Co., Ltd. specializes in high-quality mechanical seals for industrial pumps.
| Specification | Details | Specification | Details |
|---|---|---|---|
| Name | Mechanical Seal | Size | 20mm |
| Country of Origin | Guangzhou, China | Brand | BERGMAN |
| Model | FS-G-U20mm | MOQ | 1 set |
| Pressure | ≤ 1.5MPa | Line Speed | ≤ 15m/s |
| Temperature | -20°C to 180°C (Depends on O-ring material) | Application | Flygt pump |
| Face Material | Tungsten carbide TC | Seat Material | Tungsten carbide TC |
| Secondary Seal | VITON FPM | Metal Parts | SS316 Hastelloy C AM350 |
| Certificate | ISO9001-2015 | Service | OEM customization service |
Applications
- Compatible with Flygt pump models: 1335.181, 2024, 2056, 2102.220, 2050, 2052, 2060, 2066, 2070, 2071, 2075, 2082, 2084, 2090, 2095, 2101, 2012, 2102, 2125, 2135, 2140, 2151, 2201, 2250, 2400, 2610, 2620, 2630, 2660, 2670, 2730, 2740, 3041, 3045, 3050, 3057, 3060, 3065, 3066, 3067, 3068, 3069, 3080, 3082, 3085, 3101, 3102, 3126, 3127, 3140, 3151, 3152, 3153, 3170, 3171, 3200, 3202, 3230, 3231, 3300, 3301, 3306, 3310, 3311, 3350, 3351, 3356, 3400, 3501, 3530
- Complies with DIN24960, ISO3069, EN12576, API682 standards
- Can replace original seals with cost-effective alternatives
- 2000+ square meter warehouse with large inventory for fast delivery
- Can replace Burgman, John Crane, AES and other world-renowned brand seals
- Supports OEM and customized services
Our Advantages
We use wear-resistant materials including tungsten carbide, silicon carbide, carbon graphite, alumina, rubber seals, PTFE seals, O-rings, etc.
Company Profile
Guangzhou Bogman Mechanical Seals Co., Ltd. (formerly Guangzhou Yongfa Mechanical Seals Co., Ltd.) was established in 1996. After more than 20 years of development, we have grown into a professional manufacturer with ISO9001:2015 certification. Our product range includes various mechanical seals and sealing materials including cemented carbide, silicon carbide, carbon graphite, and alumina.
Facilities
- 2000+ square meter warehouse with large inventory
- Modern advanced machine tool equipment
- Dust-free workshop with inspection equipment
- Assembly line operation
Application Range
Widely used in pipeline pumps, centrifugal pumps, sewage pumps, chemical pumps for petroleum, chemical, aerospace, pharmaceutical, food, and agricultural irrigation industries.
Packaging & Shipping
Various packaging options available with customized packaging for large orders.
FAQ
Q: Are you a factory or a trader?
A: We are a production factory with our own international trade department.
Q: Where is your factory located?
A: Our factory is located in Guangzhou City, near Guangzhou Port and Shenzhen Port.
Q: How many days is your delivery time?
A: Stock items ship immediately after payment. Custom items require 10-25 days depending on order quantity.
Q: Do you provide free samples?
A: Sample costs can be refunded after order placement.
Q: What are your payment terms?
A: 100% prepayment for stock items, 30% deposit for custom orders with balance before shipment.
