Replace Flygt 1330 Pump 45mm Upper Seal Mechanical Seal with TC Face and DIN24960 Standard

  • Replace Flygt 1330 Pump 45mm Upper Seal Mechanical Seal with TC Face and DIN24960 Standard
  • Replace Flygt 1330 Pump 45mm Upper Seal Mechanical Seal with TC Face and DIN24960 Standard
  • Replace Flygt 1330 Pump 45mm Upper Seal Mechanical Seal with TC Face and DIN24960 Standard
  • Replace Flygt 1330 Pump 45mm Upper Seal Mechanical Seal with TC Face and DIN24960 Standard
  • Replace Flygt 1330 Pump 45mm Upper Seal Mechanical Seal with TC Face and DIN24960 Standard
  • Replace Flygt 1330 Pump 45mm Upper Seal Mechanical Seal with TC Face and DIN24960 Standard
起源の場所 広州、中国
ブランド名 BERGMAN, BERGMAN
モデル番号 1330 45mm
最小注文数量 1
価格 $60-90

試供品およびクーポンのための私に連絡しなさい。

whatsapp:0086 18588475571

Wechat: 0086 18588475571

スカイプ: sales10@aixton.com

心配があれば、私達は24時間のオンライン・ヘルプを提供する。

x
商品の詳細
サイズ 45mm 顔の素材 タングステンカーバイドTC
シートマテリアル タングステンカーバイドTC エラストーマー材料 VITON FPM
金属部品 SS316 ハステロイ C AM350 最大圧力 ≤1.5MPa
最大ライン速度 ≤15m/s 温度範囲 -20°C-180°C
HTSコード 8484.20.00 互換性のあるモデル Flygt 1335.181、2024、2056など。
標準コンプライアンス DIN24960、ISO3069、EN12576、API682 二次シール VITON FPM
Oリング材料 アプリケーションに依存します 製品タイプ 機械シール
取り替えのための フライト 3085
ハイライト

Replace Flygt 1330 Pump Mechanical Seal

,

DIN24960 Standard Mechanical Seal

,

ISO3069 Standard Upper Seal
メッセージ
製品の説明
Replace Flygt 45mm 1330 Pump Mechanical Seal Upper Seal
Product Overview

This mechanical seal is designed as a replacement for Flygt pump models, offering high-quality materials and precise engineering for reliable performance in demanding industrial applications.

Technical Specifications
Parameter Value Parameter Value
Name Mechanical Seal Size Standard size 20mm
Brand BERGMAN Model 45mm, 25mm
Pressure ≤ 1.5mpa Line Speed ≤ 15m/s
Temperature -20°C-180°C (Depends on O-ring material) Application Flygt pump
Face Material Tungsten carbide TC Seat Material Tungsten carbide TC
Secondary Seal VITON FPM Metal Parts SS316 Hastelloy C AM350
Certificate ISO9001-2015 Service OEM customization service
Compatible Flygt Pump Models

This mechanical seal is compatible with a wide range of Flygt pump models including:

  • 1335.181, 2024, 2056, 2102.220, 2050, 2052, 2060, 2066
  • 2070, 2071, 2075, 2082, 2084, 2090, 2095, 2101, 2012, 2102
  • 2125, 2135, 2140, 2151, 2201, 2250, 2400, 2610, 2620, 2630
  • 2660, 2670, 2730, 2740, 3041, 3045, 3050, 3057, 3060, 3065
  • 3066, 3067, 3068, 3069, 3080, 3082, 3085, 3101, 3102, 3126
  • 3127, 3140, 3151, 3152, 3153, 3170, 3171, 3200, 3202, 3230
  • 3231, 3300, 3301, 3306, 3310, 3311, 3350, 3351, 3356, 3400
  • 3501, 3530, and full range of Flygt pump mechanical seals
Key Features
  • Complies with DIN24960, ISO3069, EN12576, API682 standards
  • Can replace original seals with cost-effective alternatives
  • Large inventory with factory-direct pricing for faster delivery
  • Compatible with Burgman, John Crane, AES and other major brands
  • OEM and customized services available
  • Premium materials including tungsten carbide, silicon carbide, and carbon graphite
Product Images

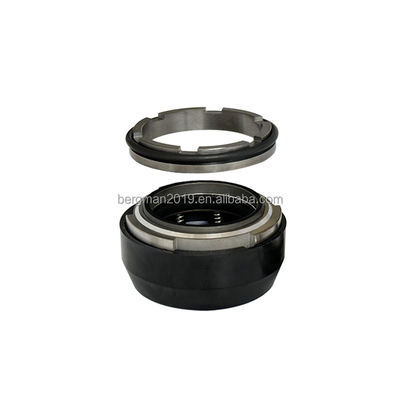

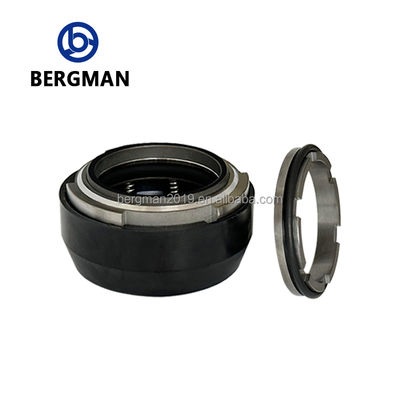

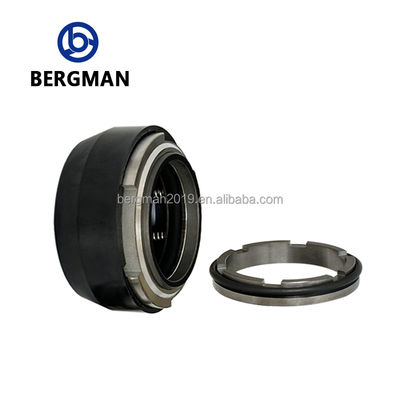

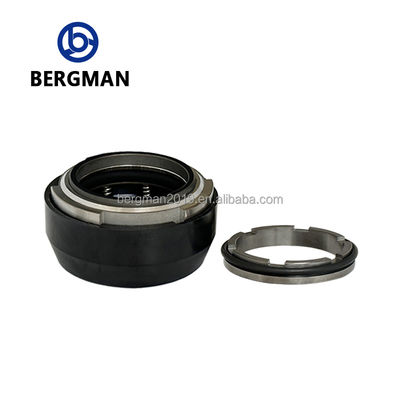

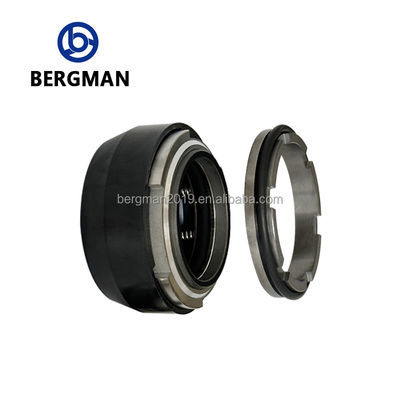

Replace Flygt 1330 Pump 45mm Upper Seal Mechanical Seal with TC Face and DIN24960 Standard 0 Replace Flygt 1330 Pump 45mm Upper Seal Mechanical Seal with TC Face and DIN24960 Standard 1 Replace Flygt 1330 Pump 45mm Upper Seal Mechanical Seal with TC Face and DIN24960 Standard 2
Company Profile

Guangzhou Bogman Mechanical Seals Co., Ltd. (formerly Guangzhou Yongfa Mechanical Seals Co., Ltd.) has been in operation since 1996. With over 20 years of development, we have established ourselves as a leading manufacturer of high-quality mechanical seals.

Our company has passed the quality management system GB/T19001-2016 idt ISO9001:2015 certification and offers a comprehensive range of mechanical seals including:

  • Pump mechanical seals
  • Axe mechanical seals
  • Fluid mechanical seals
  • Metal bellows mechanical seals
  • Various sealing materials including cemented carbide, silicon carbide, and carbon graphite
Replace Flygt 1330 Pump 45mm Upper Seal Mechanical Seal with TC Face and DIN24960 Standard 3
Our Facilities
  • 2,000+ square meter warehouse with large inventory
  • Modern advanced machine tool equipment
  • Dust-free workshop environment
  • Comprehensive inspection equipment
  • Efficient assembly line operations
Replace Flygt 1330 Pump 45mm Upper Seal Mechanical Seal with TC Face and DIN24960 Standard 4 Replace Flygt 1330 Pump 45mm Upper Seal Mechanical Seal with TC Face and DIN24960 Standard 5
Application Range

Our mechanical seals are widely used in:

  • Pipeline pumps, centrifugal pumps, sewage pumps, chemical pumps
  • Petroleum, chemical, aerospace, pharmaceutical, and food industries
  • Agricultural irrigation systems
Frequently Asked Questions
Q: Are you a factory or a trader?
A: We are a production factory with our own international trade department.
Q: Where is your factory located?
A: Our factory is located in Guangzhou City, near Guangzhou Port and Shenzhen Port.
Q: How many days is your delivery time?
A: Stock items ship immediately after payment. Custom items require 10-25 days for production.
Q: Do you provide free samples?
A: Samples are typically not free, but sample costs can be refunded after order placement.
Q: What are your payment terms?
A: Stock items: 100% prepayment. Custom items: 30% deposit, 70% before shipping. We accept T/T, Western Union, and Alibaba payments.
Contact Us
International Trade:
Li Wei - Mobile: +86-15622176299
Yang Yingjie - WeChat/WhatsApp: +86-15627223988
Yang Aijun - WeChat/WhatsApp: +86-13602719849
Email: bergman168@outlook.com
