35mm Flygt Pump Mechanical Seal with Tungsten Carbide TC and VITON FPM for ISO9001-2015 Certified Applications
試供品およびクーポンのための私に連絡しなさい。
whatsapp:0086 18588475571
Wechat: 0086 18588475571
スカイプ: sales10@aixton.com
心配があれば、私達は24時間のオンライン・ヘルプを提供する。
x商品の詳細
| サイズ | 35mm | 顔の素材 | タングステンカーバイドTC |
|---|---|---|---|
| シートマテリアル | タングステンカーバイドTC | エラストーマー材料 | VITON FPM |
| 金属部品 | SS316 ハステロイ C AM350 | 最大圧力 | ≤1.5MPa |
| 最大温度 | -20°C-180°C | 最大ライン速度 | ≤15m/s |
| モデル | fgl-fs | HTSコード | 8484.20.00 |
| 互換性のあるモデル | 2610、2620、2630、2640、4610、4620、2660、2670、4630、4640、3153、5100.211、5100.220、2100.211、3171、3152、4650、466 | 標準コンプライアンス | DIN24960、ISO3069、EN12576、API682 |
| 二次シール | VITON FPM | Oリング材料 | 温度範囲に依存します |
| 交換互換性 | flygtオリジナルシール | ||
| ハイライト | ISO9001-2015 Mechanical Seal,Tungsten Carbide TC Pump Seal,VITON FPM Flygt Seal |
||
製品の説明

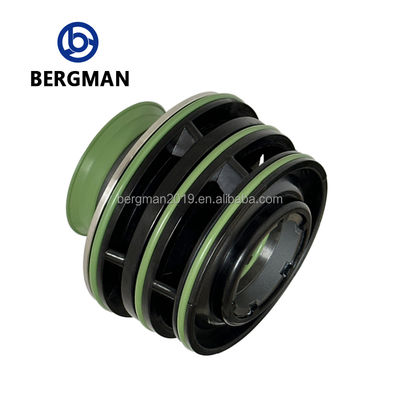

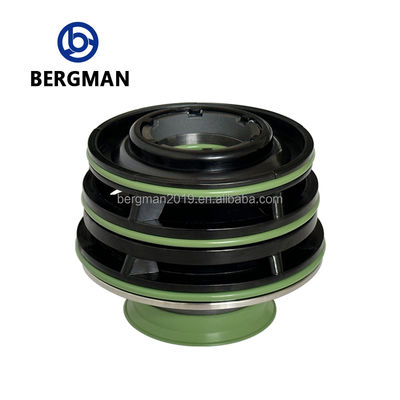

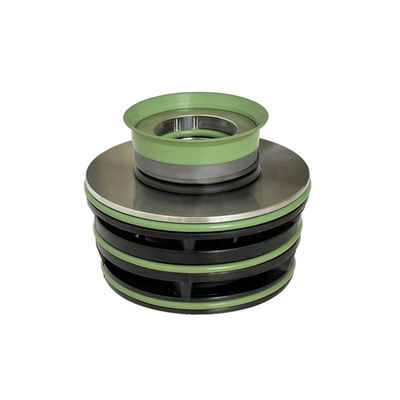

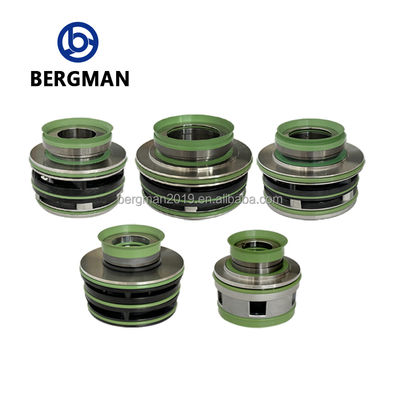

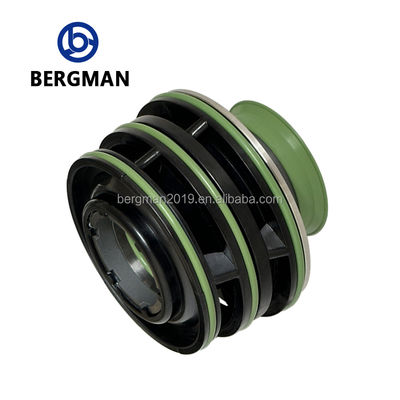

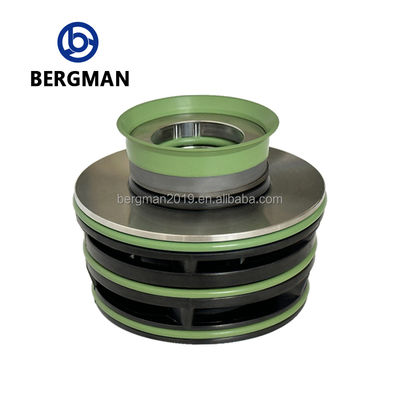

Flygt FS-35mm 3153 8204 2660 2670 Pump Barrel Mechanical Seal
Product Overview
High-quality mechanical seal replacement for Flygt pumps, manufactured by Guangzhou Bergman Mechanical Seals Co., Ltd.
Technical Specifications
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Name | Mechanical Seal | Country of Origin | Guangzhou, China |
| Size | Standard size (20mm, 25mm, 35mm, 45mm, 60mm, 90mm) | Brand | BERGMAN |
| Model | FGL-FS | MOQ | 1 set |
| Pressure | ≤ 1.5MPa | Line Speed | ≤ 15m/s |
| Temperature | -20°C to 180°C (depends on O-ring material) | Application | Flygt pump |
| Face Material | Tungsten Carbide (TC) | Seat Material | Tungsten Carbide (TC) |
| Secondary Seal | VITON FPM | Metal Parts | SS316, Hastelloy C, AM350 |
| Certificate | ISO9001-2015 | Service | OEM customization service |
Compatible Flygt Pump Models
2610, 2620, 2630, 2640, 4610, 4620, 2660, 2670, 4630, 4640, 3153, 5100.211, 5100.220, 2100.211, 3171, 3152, 4650, 4660, 5100.250, 5100.251, 5100.260, 5100.261, 3202, 4670, 4680, 5100.300, 5100.310, 5151.300, 5151.310, 3301, 5150.350, 5150-360
Key Features
- Complies with DIN24960, ISO3069, EN12576, API682 standards
- Direct replacement for original Flygt seals
- Available in different price points based on customer requirements
- 2,000+ square meter warehouse with large inventory for fast delivery
- Can replace Burgman, John Crane, AES and other major brand seals
- OEM and customization services available
- Factory-direct pricing with excellent quality and fast delivery
Material Specifications
Wear-resistant materials including tungsten carbide, silicon carbide, carbon graphite, alumina, rubber seals, PTFE seals, O-rings, etc.
Company Profile
Guangzhou Bogman Mechanical Seals Co., Ltd. (formerly Guangzhou Yongfa Mechanical Seals Co., Ltd.) was established in 1996. After more than 20 years of development, the company was reorganized in 2019 and expanded in 2023. We are ISO9001:2015 certified and specialize in various mechanical seals including pump seals, fluid seals, metal bellows seals, and more. Our materials include cemented carbide, silicon carbide, carbon graphite, and alumina.
Located in Guangzhou with convenient access to major ports, we maintain a 2,000+ square meter warehouse for efficient logistics and quick delivery.
Facilities
- Over 2,000 square meters of warehouse space
- Modern machine tools and dust-free workshop
- Advanced inspection equipment
- Assembly line production
Applications
Widely used in pipeline pumps, centrifugal pumps, sewage pumps, chemical pumps for petroleum, chemical, aerospace, pharmaceutical, food, and agricultural irrigation applications.
Packaging & Shipping
Various packaging options available with customized packaging for large orders.
Frequently Asked Questions
Q: Are you a factory or a trader?
A: We are a production factory with our own international trade department.
Q: Where is your factory located?
A: Our factory is in Guangzhou City, near Guangzhou Port and Shenzhen Port.
Q: How many days is your delivery time?
A: Stock items ship immediately. Custom items require 10-25 days depending on quantity.
Q: Do you provide free samples?
A: Samples are not free, but sample costs can be refunded with order.
Q: What is your payment terms?
A: Stock items: 100% prepayment. Custom items: 30% deposit, 70% before shipping. We accept T/T, Western Union, and Alibaba payments.
Q: Can you customize products not in your catalog?
A: Yes, we welcome OEM and custom orders.
